Miniature SMD connectors 2.54mm (compatible with Micro-MaTch)

Miniature SMD connectors 2.54mm (compatible with Micro-MaTch) - W + P Products

The following connectors are on rolls - tape-and-reel - and have SMD pick-and-place film tape: Manufacturer's data sheet.
They are UL94 V-0 and RoHs-conform.

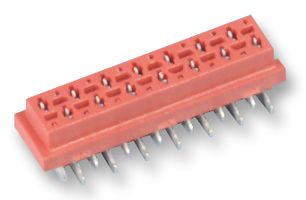

Figure 1 - Typical connector image (pin count may vary - not showing pick-and-place film tape)

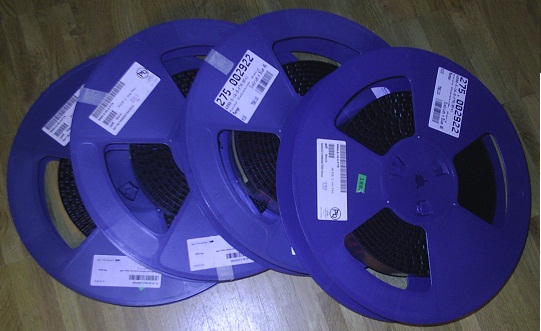

Figure 2 - Tape-and-reel

The following (left-over) rolls [that is, originally there were approx. 1000 pieces on each roll and these are the remainder on the partially used roll] are available fur purchase:

- W + P part number: 6990-5-16-0-FTR/BF*1 [16 pin] - Quantity on roll = 399 pieces. Price CHF 320.00 (MicroMaTch equivalent 8-188275-6).

- W + P part number: 6990-5-16-0-FTR/BF*1 [16 pin] - Quantity on roll = 297 pieces. Price CHF 240.00 (MicroMaTch equivalent 8-188275-6).

- W + P part number: 6990-5-06-0-FTR/BF*1 [6 pin] - Quantity on roll = 387 pieces. Price CHF 145.00 (MicroMaTch equivalent 7-188275-6).

- W + P part number: 6990-5-06-0-FTR/BF*1 [6 pin] - Quantity on roll = 282 pieces. Price CHF 105.00 (MicroMaTch equivalent 7-188275-6).

Prices excluding VAT for delivery in Switzerland.
*1 = IPC/JEDEC J-STD-020C, Reflow-soldering

Please email with details of delivery address and urgency for full delivery price as well as payment terms or currency [eg. credit card, bank transfer].
