This controller board for the high-voltage development platform HVP-MC3PH is based on the KE18F512VLL16 which is a 168MHz device from the 5V robust KE family with Cortex-M4F core. This KE18 device has 512k Flash and 64k SRAM and is in a 100 pin LQFP package, whereby the KE18 is also available in 64 pin LQFP and its memory ranges from 256k..256k Flash. There is an 8MHz crystal on the board for clocking the part.

Full details and documentation for this board can be obtained from the Freescale web site: HVP-KE18F

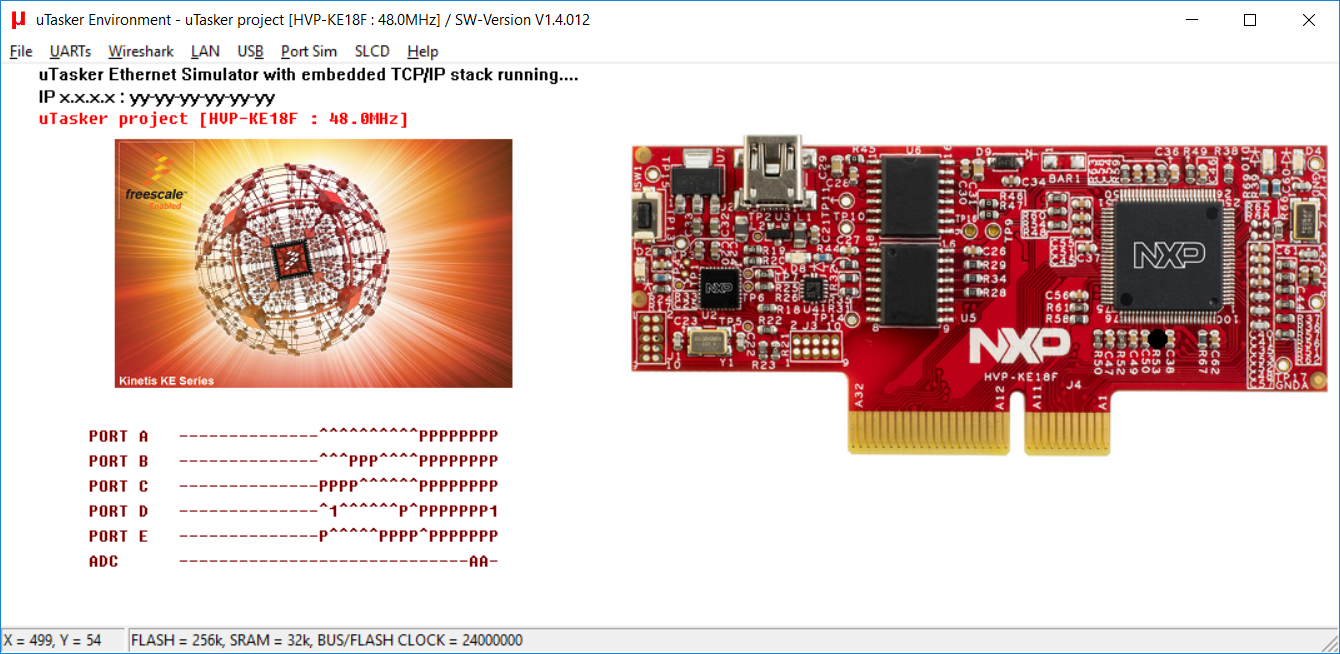

To configure the µTasker project for this board simply enable the define HVP_KE18F in the project's config.h file. The compiler needs to be set to build for Cortex m4 (and not Cortex m0+) and the linker script KE_512_64.ld should be selected [KE_256_64_BM.ld for downloadable version] {the linker script extension may vary for different compilers, whereby *.ld is valid for GCC}

HVP-KE18F Binaries

The support of the KE18 and this board is presently in the development phase and these simple applications shows presently confirmed functionality - please come back later or contact us for more information using an email address found at the bottom of the home page.
